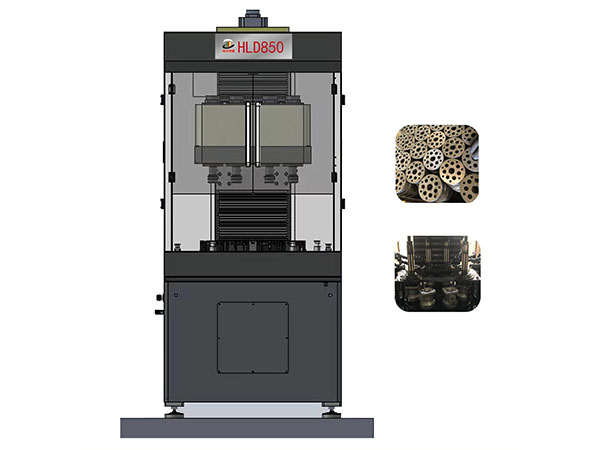

The HLD series machine tools have multiple options, including 4-axis 6-station, 6-axis 8-station, and multi motor and single motor options.
One、Equipment parameters
| SN | Project | Parameter |
| 1 | Aperture range | Φ4mm- Φ50mm |
| 2 | Spindle speed | 100-2000RPM |
| 3 | Spindle power | Single motor 4kw, 5.5kw, 7 5kw |
| 4 | Multi motor | 1kw/axis |
| 5 | Stroke length | 650mm |
| 6 | Stroke speed | 10m/min |
| 7 | Stroke Motor | 3kw，2000RPM |
| 8 | Machine weight | Approximately 3000kg |
| 9 | area covered | 1700mm (length) * 1400mm (width) * 3200mm (height) |
| 10 | Power standard | 380V, 50Hz, 3Ph |
Two、 Equipment processing accuracy
1. Aperture tolerance: ≤ 0.001mm;
2. Roundness: ≤ 0.0005mm;
3. Straightness: ≤ 0.0008mm;
4. Roughness: ≤ Ra0.2um.
Three、 Description of the main points of the equipment
1. The key components are produced using Haichuan's unique design and process, and strict testing standards are implemented to ensure the good accuracy of the machine tool.
2. The clamping of high-strength linear guide rail pairs, ball screw pairs, and centralized automatic lubrication system ensures the reliability and lifespan of the machine tool.
3. The advanced CNC operating system makes parameter setting and operation more convenient, thereby reducing the workload of operators.
4. The machining accuracy of the HLD stranding and honing system depends on the scientific combination of machine tools, tools, and fixtures. The machining process is controlled by a program. Electroplated diamond tools are particularly durable, and multiple tools cut simultaneously. Therefore, the processing rhythm of the HLD stranding and honing system remains unchanged, with high machining efficiency and low cost. The consistency of machining accuracy is good, making it particularly suitable for mass production.
