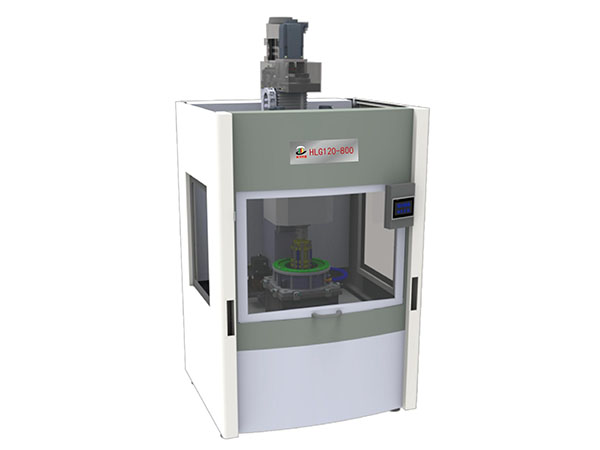

One、Equipment parameters
| SN | Project | Name | Parameter |
| 1 | structural style | Number of shaft heads: | 1 axis |
| Station: | 2 workstation |
| Table size: | 1250mm*900mm |
| Workbench carrying capacity: | 500kg . |
| 2 | Spindle mechanism | Control method: | Variable frequency motor+synchronous toothed belt |
| Spindle motor: | 4 KW |
| Processing aperture range: | Φ 120- Φ300m (optional outside the range) |
| Variable speed range: | 50-600rpm (continuously variable speed) |
| 3 | Stroke mechanism | Control method: | Servo motor+ball screw |
| Stroke speed MAX: | 28m/min |
| Stroke length MAX: | 800mm/1000mm |
| 4 | Feed mechanism | Control method: | Servo motor+ball screw |
| Feed form: | Constant feed |
| Feed resolution: | 0.1um |
| 5 | other | Equipment weight: | About 6.5 tons |
| Equipment size (length x width x height): | 2060*1780*3230 |
| Noise standard: | Less than 75 decibels under continuous loading peak in a standard factory environment |
| Power Supply: | Three phase AC: 380V50HZ |
| Environmental conditions: | Temperature -10~+45C |
| Temperature<72% |
Two、 Equipment processing accuracy
1. Roundness: ≤ 10um/ Φ 200mm；
2. Cylindricity: ≤ 15um/300mm;
3. Roughness: ≤ Ra0.2um.
Three、 Description of the main points of the equipment
1. The basic components of the machine tool are all made of high-strength and high-quality cast iron, and undergo overall stress relief treatment.
2. Advanced touch screen control panel, easy and convenient to adjust settings, allowing operators to operate the machine tool more intuitively.
3. By using the "Siemens" control system and precise control, good shape accuracy, mesh angle, surface roughness, and dimensional consistency can be achieved.
4. The machine tool is equipped with a complete cooling and filtration system, which mainly consists of a "magnetic separator+paper belt filter+oil cooler", with a filtration accuracy of ≤ 20um.
5. The machine tool is equipped with a centralized automatic lubrication system to provide a continuous supply of lubricating fluid for various functional components.
