One、Equipment parameters
| SN | Project | Parameter |
| 1 | Machining aperture | Φ30-Φ630m(Optional beyond the scope) |
| 2 | Spindle drive | High and low speed transmission+continuously variable transmission |
| 3 | Spindle speed | 10-350R PM |
| 4 | Stroke mode | servo motor |
| 5 | Stroke speed | 40m/min |
| 6 | Stroke length | 3000mm |
| 7 | Feed method | Servo motor+customized screw rod |
| 8 | Feed resolution | 1um |
| 9 | Cooling system | Flow rate 50/min, capacity ≥ 300L |
| 10 | Standard fixture clamping outer diameter | 50-560mm/560-720mm |
| 11 | External dimensions | 8800mm* 1200mm*1700mm |
| 12 | Machine weight | 3.8 tons |
Two、 Description of the main points of the equipment
1. Adopting the "Siemens" control system and introducing a touch screen, the stroke position, spindle speed, and feed pressure can be set arbitrarily to achieve better control of inner hole accuracy.
2. The machine tool is equipped with a complete cooling and filtration system, which mainly consists of a "magnetic separator+paper tape filter", with a filtration progress of ≤ 30um.
3. The device has short stroke and pause stroke functions, making it easy to correct the hole shape.
4. The grinding head has an automatic expansion and contraction system, and the expansion and contraction pressure can be controlled arbitrarily.
5. The processing method can be switched between "quantitative" and "constant pressure" at will.
6. The equipment is equipped with a shift gearbox, which can conveniently obtain spindle torque and speed based on the aperture size.
7. The device has an NC controlled overload protection system.
8. The equipment has an automatic compensation system for oil and stone wear.

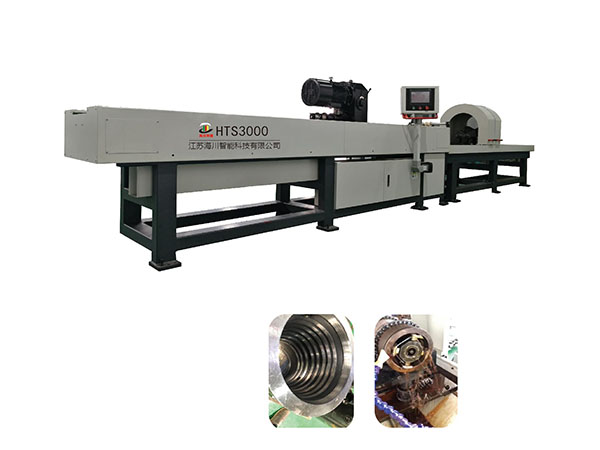

The HTS series high-precision horizontal deep hole honing machine is efficient, high-precision, and widely applicable.
Five standard configurations are available:
HTS 2000: Processing length 2000mm
HTS4000: Processing length 4000mm
HTS5000: Processing length 5000mm
HTS8000: Processing length 8000mm
HTS10000: Processing length 10000mm
