HTS5000 high-speed horizontal deep hole honing machine

当前位置： 首页 > Product > HTS5000 high-speed horizontal deep hole honing machine

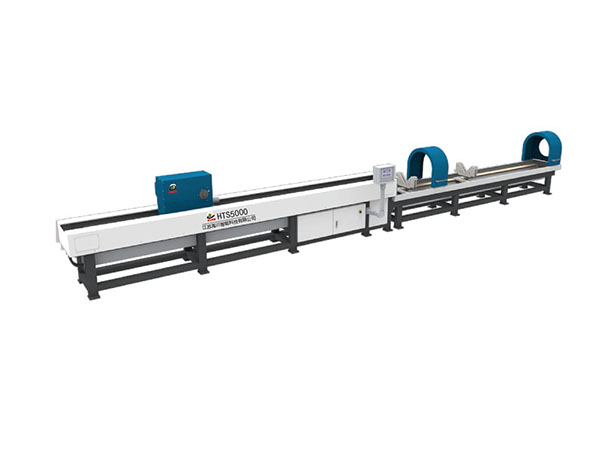

HTS5000 high-speed horizontal deep hole honing machine

作者： 时间：2023-03-21 浏览量：220

HTS5000 high-speed horizontal deep hole honing machine

产品简介：序号项目参数1加工孔径Φ50-Φ630m(范围之外可选配)2主轴驱动高低速变速箱...

商品详情




Equipment parameters

SNProjectParameter
1Machining apertureΦ50-Φ630m(Optional beyond the scope)
2Spindle driveHigh and low speed transmission+continuously variable transmission
3Spindle speed10-350R PM
4Stroke modeservo motor
5Stroke speed40m/min
6Stroke length5000mm
7Feed methodServo motor+customized screw rod
8Feed resolution1um
9Cooling systemFlow rate 100/min, capacity ≥ 500L
10Standard fixture clamping outer diameter60-680mm
11External dimensions12724mm* 940mm*1700mm
12Machine weight5.8 tons
